REPLACEMENT

CAUTION / NOTICE / HINT

CAUTION:

Prolonged and repeated contact with engine oil will result in the removal of natural oils from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Wear protective clothing and gloves. Avoid contact with used oil. If contact occurs, wash your skin thoroughly with soap or waterless hand cleaner. Never use gasoline, thinners, or solvents to wash the skin.
In order to protect the environment, dispose of used oil and used oil filters at designated disposal sites only.

PROCEDURE

1. DRAIN ENGINE OIL

(a) Remove the oil filler cap.

(b) Remove the oil pan drain plug and gasket, and drain the engine oil into a container.

Torque:

40 N·m {408 kgf·cm, 30 ft·lbf}

2. REMOVE OIL FILTER CAP ASSEMBLY

(a) Connect a hose with an inside diameter of 15 mm (0.591 in.) to the pipe.

Text in Illustration

*1	Pipe
*2	Hose

(b) Remove the oil filter drain plug from the oil filter cap.

Text in Illustration

*1	Valve
*2	Cap
*3	O-ring
*4	Pipe

NOTICE:

If the O-ring is removed with the drain plug, install the O-ring together with the pipe.

HINT:

Use a container to catch the draining oil.

(d) Check that the oil is drained from the oil filter. Then disconnect the pipe as shown in the illustration and remove the O-ring.

(e) Using SST, remove the oil filter cap.

Text in Illustration

*1	Oil Filter Bracket Clip

SST: 09228-06501

NOTICE:

Do not remove the oil filter bracket clip.

(f) Remove the oil filter element and O-ring from the oil filter cap.

Text in Illustration

*1	Oil Filter Element
*2	O-ring

NOTICE:

Be sure to remove the O-ring by hand, without using any tools, to prevent damage to the O-ring groove.

3. INSTALL OIL FILTER CAP ASSEMBLY

(a) Clean the inside of the oil filter cap, threads and O-ring groove.

(b) Apply a small amount of engine oil to a new O-ring and install it to the oil filter cap.

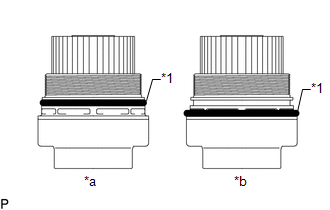

Text in Illustration

*1	O-ring
*a	CORRECT
*b	INCORRECT

NOTICE:

Be sure to install the O-ring in the proper location, otherwise oil may leak.
Do not twist the O-ring.

(d) Remove any dirt or foreign matter from the installation surface of the engine.

(e) Apply a small amount of engine oil to the O-ring again and temporarily install the oil filter cap.

NOTICE:

Make sure that the O-ring does not get caught between the parts.

(f) Using SST, tighten the oil filter cap.

Text in Illustration

*1	Oil Filter Cap Assembly
*2	O-ring
*3	Oil Filter Bracket
*a	No Gap

SST: 09228-06501

Torque:

25 N·m {255 kgf·cm, 18 ft·lbf}

NOTICE:

After tightening the oil filter cap assembly, make sure that there is no gap and that the O-ring is not protruding.

(g) Apply a small amount of engine oil to a new drain plug O-ring, and install it to the oil filter cap.

NOTICE:

Before installing the O-ring, remove any dirt or foreign matter from the installation surface of the oil filter cap.

(h) Install the oil filter drain plug.

Text in Illustration

O-ring

Torque:

13 N·m {127 kgf·cm, 10 ft·lbf}

NOTICE:

Be careful that the O-ring does not get caught between any surrounding parts.

4. ADD ENGINE OIL

(a) Add new oil.

Standard Oil Grade:

Oil Grade	Oil Viscosity
ILSAC multigrade engine oil	0W-20 5W-20

Oil Grade

Oil Viscosity

ILSAC multigrade engine oil

0W-20

5W-20

Standard Capacity:

Item	Specified Condition
Drain and refill (with oil filter change)	4.4 liters (4.6 US qts, 3.9 Imp. qts)
Drain and refill (without oil filter change)	4.0 liters (4.2 US qts, 3.5 Imp. qts)
Dry fill	5.3 liters (5.6 US qts, 4.7 Imp. qts)

(b) Install the oil filler cap.

5. INSPECT FOR OIL LEAK

(a) Start the engine. Make sure that there are no oil leaks.

6. INSPECT ENGINE OIL LEVEL
