DISPOSAL
CAUTION / NOTICE / HINT
CAUTION:
Before performing pre-disposal deployment of any SRS component, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.
PROCEDURE
1. PRECAUTION
CAUTION:
HINT:
When scrapping a vehicle equipped with an SRS or disposing of the front seat side airbag assembly, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the Service Dept. of TOYOTA MOTOR SALES, U.S.A., INC.
2. DISPOSE OF FRONT SEAT SIDE AIRBAG ASSEMBLY (WHEN INSTALLED IN VEHICLE)
NOTICE:
HINT:
Prepare a battery as the power source to deploy the airbag.
(a) Check the function of SST (See page ). SST: 09082-00700 |
|
(b) Refer to Precaution (See page ).
(c) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
(d) Disconnect the connector from the front seat side airbag assembly.
NOTICE:
When disconnecting the airbag connector, take care not to damage the airbag wire harness.
(1) Slide the slider to release the lock, and then disconnect the yellow airbag connector under the front seat assembly.
Text in Illustration
*1 |
Slider |
- |
- |
(e) Install SST.
CAUTION:
Check that there is no looseness in the front seat assembly.

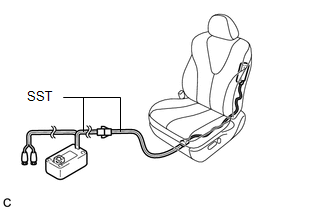

(1) Connect the SST connector to the front seat side airbag assembly connector. SST: 09082-00700 SST: 09082-00750 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. |
|
(2) Move SST at least 10 m (32.8 ft.) away from the front side window. Text in Illustration
|
|
(3) Maintaining sufficient clearance for the SST wire harness in the front side window, close all doors and windows of the vehicle.
NOTICE:
Take care not to damage the SST wire harness.
(4) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
(f) Deploy the airbag.
(1) Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.
(2) Press the SST activation switch and deploy the airbag.
CAUTION:
HINT:
The airbag is deployed as the LED of the SST activation switch comes on.
3. DISPOSE OF FRONT SEAT SIDE AIRBAG ASSEMBLY (WHEN NOT INSTALLED IN VEHICLE)
NOTICE:
Be sure to observe the following procedure when deploying the airbag.
HINT:
Prepare a battery as the power source to deploy the airbag.
(a) Check the function of SST (See page ). SST: 09082-00700 |
|
(b) Remove the front seat side airbag assembly (See page ).
CAUTION:
When storing the front seat side airbag assembly, keep the airbag deployment side facing upward.
(c) Using braided wire, tie down the front seat side airbag assembly to an unneeded tire.
Text in Illustration
*1 |
Stripped Wire Section |
*2 |
Wire Diameter |
Wire:
Stripped wire section
1.25 mm2 (0.0019 in.2) or more
CAUTION:
If the wire is too thin or an alternative object is used to tie down the front seat side airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with an area of at least 1.25 mm2 (0.0019 in.2).
HINT:
To calculate the area of the stripped wire section:
Area = 3.14 x (Diameter)2 / 4

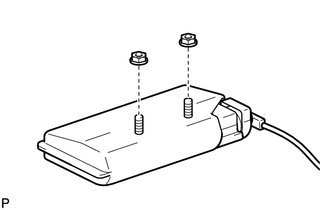

(1) Install the 2 nuts to the front seat side airbag assembly. |
|
(2) Wind the wires around the stud bolts of the front seat side airbag assembly as shown in the illustration. |
|
(3) Position the front seat side airbag assembly inside the tire. Text in Illustration
Minimum tire size: Must exceed the following dimensions Width: 185 mm (7.28 in.) Inner diameter: 360 mm (1.18 ft.) CAUTION:
NOTICE: The tire may be marked by the airbag deployment, so use an unneeded tire. |
|
(d) Install SST.
(1) Connect the SST connector to the front seat side airbag assembly connector. SST: 09082-00750 |
|
(e) Place the tires.
(1) Place at least 2 tires under the tire to which the front seat side airbag assembly is tied.
(2) Place at least 2 tires onto the tire to which the front seat side airbag assembly is tied. The top tire should have a wheel installed.
NOTICE:
Do not place the SST connector under the tire because it could be damaged.
(3) Tie the tires together with the 2 wires. CAUTION: Make sure that the wires are tight. Looseness in the wires results in the tires breaking loose when the airbag is deployed. |
|
(f) Install SST.
(1) Connect the SST connector. Text in Illustration
SST: 09082-00700 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire. |
|
(2) Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.
(g) Deploy the airbag.
(1) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
(2) Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the front seat side airbag assembly is tied.
(3) Press the SST activation switch and deploy the airbag.
CAUTION:
Before deployment, make sure that no one is near the airbag.
HINT:
The airbag is deployed as the LED of the SST activation switch comes on.
(h) Dispose of the front seat side airbag assembly. CAUTION:
(1) Remove the front seat side airbag assembly from the tire. (2) Place the front seat side airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations. |
|
