Toyota Venza: System Description

Toyota Venza Service Manual / Theft Deterrent / Keyless Entry / Smart Key System(for Entry Function) / System Description

SYSTEM DESCRIPTION

CAUTION:

If using a pacemaker, be sure to read the manual of the pacemaker before using the key, as the radio waves of the key may affect the pacemaker.

1. SMART KEY SYSTEM DESCRIPTION

(a) In addition to conventional mechanical key and wireless door lock control functions, the smart key system enables door locking/unlocking, steering lock releasing and engine starting without operating the key. The only requirement is that the key is in the user's possession.

  • This system is controlled by the certification ECU (smart key ECU assembly). When the certification ECU (smart key ECU assembly) detects the presence of the smart key system in one of the detection areas, it identifies and checks the ID code, and outputs operation signals to the related ECU in accordance with their functions.
  • The detection areas are formed by 6 oscillators (2 door oscillators, 1 outside oscillator and 3 indoor oscillators).

2. DETECTION AREA


Actuation Area

Detail

Interior

The interior detection area of the indoor electrical key oscillators (for front, center and rear floor) is formed when the driver door is opened or closed, when the engine switch is pushed, when a warning is activated, or when the lock sensor on the door outside handle assembly or lock switch on the back door opener switch assembly is on.

Exterior

The exterior detection area formed by the door electrical key oscillators (for driver and front passenger side) and outside electrical key oscillator (for rear side) is approximately 0.7 to 1.0 m (2.30 to 3.28 ft.) from the door outside handle assembly of the front doors, or the center of the rear bumper.

Around Front Door

The exterior detection area of the door electrical key oscillator (for driver or front passenger side) is formed by transmitting a request signal every 0.25 seconds while the engine switch is off and each door is locked. In this way it detects the proximity of a key. When locking the door using the lock sensor on the door outside handle assembly, the detection area is formed when the lock sensor is touched.

Around Back Door

The exterior detection area of the outside electrical key oscillator (for rear side) is formed by when the back door opener switch assembly (opener or lock switch) is on.

3. FUNCTION OF MAIN COMPONENTS

Component

Function

Key
  • Outputs information such as the key ID and vehicle ID when request signals that are output by the indoor, outside and door oscillators are received.
  • Outputs a request signal when the lock, unlock or panic on the key is pushed.
  • Outputs information such as the key ID and vehicle ID when the radio wave that is output by the transponder key amplifier in the engine switch is received.
  • Has an integrated mechanical key that can be used to unlock the doors when the key battery is weak.

Certification ECU (Smart Key ECU assembly)
  • Certifies the ID code received from the door control receiver and transmits the certification results to the steering lock ECU (steering lock actuator assembly).
  • Controls the oscillators and touch sensors.
  • Transmits the door lock/unlock request signals during the entry function.

Main Body ECU (Driver Side Junction Block Assembly)
  • Receives the request signal from the certification ECU (smart key ECU assembly) and actuates the door lock motors to unlock or lock all the doors.
  • Transmits the condition of each door and, the back door to the certification ECU (smart key ECU assembly).

Front Door Outside Handle Assembly (for Driver, Front Passenger Side) (touch sensor)

Sends a door unlock request signal to the certification ECU (smart key ECU assembly) when the touch sensor on the inner side of the front door outside handle assembly is touched.

Front Door Outside Handle Assembly (for Driver, Front Passenger Side) (lock sensor)

Sends a door lock request signal to the certification ECU (smart key ECU assembly) when the lock sensor on the front door outside handle assembly is touched.

Door Electrical Key Oscillator (for Driver, Front Passenger Side)

Receives the request signal from the certification ECU (smart key ECU assembly), and creates a detection area around the front doors.

Indoor Electrical Key Oscillator (for Front, Center and Rear Floor)

Receives a request signal from the certification ECU (smart key ECU assembly) and forms the interior detection area.

Outside Electrical Key Oscillator (for Rear Side)

Receives the request signal from the certification ECU (smart key ECU assembly), and forms a detection area around the back door.

Door Control Receiver Assembly

Receives the ID code from the key and transmits it to the certification ECU (smart key ECU assembly).

Outside Rear View Mirror

  • Foot Light

When a key enters the door electrical key oscillator detection area, foot light is illuminated in accordance with a request signal of the certification ECU (smart key ECU assembly).

Back Door Opener Switch Assembly

  • Opener Switch

Transmits a back door open request signal to the certification ECU (smart key ECU assembly).

Back Door Opener Switch Assembly

  • Lock Switch

Transmits a back door lock request signal to the certification ECU (smart key ECU assembly).

Stop Light Switch

Outputs state of the brake pedal to the main body ECU (driver side junction block assembly).

Accessory Meter Assembly

Key Warning Light*1

Illuminates simultaneously to inform the driver of malfunctions in the smart key system.

Multi-information Display*2

The following warning messages appear to alert the driver.

  • Shift to P position and push engine switch to turn power off
  • Key is not detected
  • Turn Power Off Key not Detected
  • Key Detected in Vehicle
  • Low Key Battery
  • Steering lock is still active
  • Check Steering Lock System
  • Depress brake pedal and push engine switch to start
  • Depress brake pedal, touch engine switch with key
  • Auto power off to conserve battery
  • Shift to P position to start

Combination Meter Assembly

  • Buzzer

Sounds to inform the driver of malfunctions in the smart key system.

*1: w/o Rear View Monitor System

*2: w/ Rear View Monitor System

4. CONSTRUCTION AND OPERATION

(a) Key

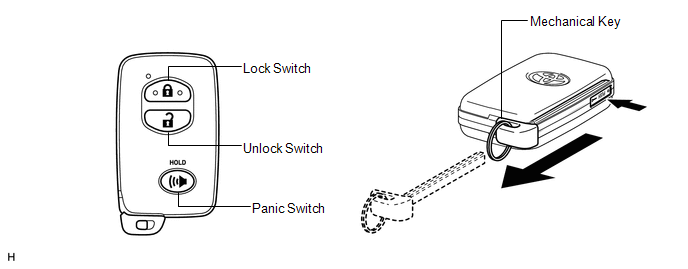

The key consists of a mechanical key, transmitter for wireless door lock control and transceiver for the smart key system.

  • The transceiver function for the smart key system receives the signals from the oscillators and sends the ID code to the tuner.
  • The transmitter function for the wireless door lock control has a lock switch, unlock switch or panic switch.
  • This mechanical key works for the driver door and glove box, but cannot start the engine.

A total of 7 keys can be registered.


(b) Oscillator (each door electrical key oscillator, indoor electrical key oscillator (for front, center and rear floor) and outside electrical key oscillator (for rear side))

Each oscillator transmits the request signal received from the certification ECU (smart key ECU assembly), and forms a key detection area to detect the presence of a key. The detection area formed by each door electrical key oscillator and outside electrical key oscillator (for rear side) is approximately 0.7 to 1.0 m (2.30 to 3.28 ft.) from the door outside handle assembly of each door or the center of the rear bumper.

  • The detection area of each door electrical key oscillator is formed by transmitting a request signal every 0.25 seconds while the engine switch is off and each door is locked. In this way, the oscillator detects the proximity of a key. During entry lock, the detection area is formed with the lock sensor on.
  • The detection area of the outside electrical key oscillator (for rear side) is formed when the back door opener switch assembly (opener or lock switch) is on.
  • The detection area of the indoor electrical key oscillators (for front, center and rear floor) is formed when any door is opened or closed, during engine start, when a warning is activated, or when the lock sensor on the door outside handle assembly or lock switch on the back door opener switch assembly is on.

5. ENTRY FUNCTION OPERATION

(a) The smart key system has the following functions:

Function

Outline

Wireless Door Lock Control

This function is a convenient system for locking and unlocking all the doors and back door at a distance. The operation of this function is the same as that in the wireless door lock control system.

Entry Illumination

When a key enters the exterior detection area of the door electrical key oscillators (for driver and front passenger side), the foot lights illuminate.

Entry Unlock

When a key is in the exterior detection area of any door electrical key oscillator, the door will unlock after the inner side of either front outside door handle is touched.

  • The front door outside handle assembly (for driver side) unlocks the driver door.
  • The front door outside handle assembly (for front passenger side) unlocks all doors and the back door.

Entry Unlock Mode Switching

Allows switching between 2 modes that can be operated with the entry unlock function.

  • Driver Door Mode (Default Setting)
  • All Door Mode

Entry Lock
  • When a key is in the exterior detection area of a door electrical key oscillator (driver or front passenger side) and the engine switch is off, all doors can be locked by simply touching the lock sensor on the door outside handle assembly.
  • When a key is in the exterior detection area of outside electrical key oscillator (for rear side) and the engine switch is off, all doors can be locked by simply pressing the lock switch on the back door opener switch assembly.

Entry Back Door Open

When a key is in the exterior detection area of the outside electrical key oscillator (for rear side), the back door opens manually by simply pressing the back door opener switch assembly (opener switch).

Prevention of Key Confinement

The key confinement prevention function prevents the vehicle from being locked with a key left inside.

Warning

When any of the situations below occur, the smart key system causes the certification ECU (smart key ECU assembly) to sound the buzzer in the combination meter and the wireless door lock buzzer, and indicate a warning on the multi-information display in order to alert the driver:

  • The engine is left running and the shift lever is in a position other than P when the driver gets out of the vehicle.
  • The key reminder sounds.
  • The engine is left running and the shift lever is in P when the driver gets out of the vehicle.
  • A door is ajar.
  • The engine is left running when a passenger gets out of the vehicle while holding the key.
  • The key is not in the detection areas.
  • The key is left in the vehicle.
  • The key battery is weak.
  • The steering lock does not release.
  • The steering lock mechanism is malfunctioning.
  • The power management control ECU is malfunctioning.
  • Engine cannot be started (driver error).
  • Engine cannot be started (system error).
  • An attempt is made to turn off the vehicle with the shift lever in a position other than P or N*.
  • Auto power off operation occurs*.
  • Immobiliser system certification completion occurs.
  • The vehicle is driven without a key.

*: w/ Rear View Monitor System

Battery Saving

If the key remains within the exterior detection area of any electrical key oscillator (for driver, front passenger or rear side), the system maintains periodic communication with the key. Therefore, if the vehicle remains parked in that state for a long time, the key battery and the vehicle battery could be drained.

Key Cancel (See page )

The following key functions can be canceled by following certain procedures:

  • Entry Unlock/Lock
  • Entry Ignition
  • Entry Back Door Open
  • Key Lock-in Prevention
  • Warning

Key Code Registration

A total of 7 keys can be registered.

This function enables the registration (writing and storing) of transmitter recognition codes in the EEPROM that is contained in the certification ECU (smart key ECU assembly).

6. WIRELESS DOOR LOCK CONTROL SYSTEM FUNCTION

Push the lock/unlock/panic switch on the key to operate each function. For details, (See page ).


7. ENTRY UNLOCK FUNCTION

(a) When the key enters any exterior detection area of a front door, the certification ECU (smart key ECU assembly) judges and certifies the key ID code received from the door control receiver assembly.

(b) After the key certification OK is confirmed, the certification ECU (smart key ECU assembly) transmits an unlock stand-by signal to the touch sensor of the relevant door.

(c) At the same time, the certification ECU (smart key ECU assembly) transmits the lighting signals to the foot lights on the outside rear view mirror and interior lights (engine switch illumination and interior lights) to turn them on (Entry Illumination Function).

(d) If a touch sensor is touched in this condition, the certification ECU (smart key ECU assembly) transmits a door unlock request signal to the main body ECU (driver side junction block assembly), and unlocks either the driver door or all doors.

  • The front door outside handle assembly (for driver side) unlocks the driver door.
  • The front door outside handle assembly (for front passenger side) unlocks all doors.

(e) The main body ECU (driver side junction block assembly) sounds the wireless door lock buzzer twice, and the main body ECU (driver side junction block assembly) flashes the hazard warning lights twice, as an answer back for entry unlock.

8. ENTRY LOCK FUNCTION

(a) The entry lock signal is transmitted to the certification ECU (smart key ECU assembly) when the user (who has the key in their possession), exits the vehicle and touches the lock senor on the door outside handle assembly or presses the lock switch on the back door opener switch assembly.

(b) The certification ECU (smart key ECU assembly) transmits a request signal for the indoor electrical key oscillators (for front, center and rear floor), door electrical key oscillators (for driver and front passenger side) and outside electrical key oscillator (for rear side) to form detection areas.

(c) The certification ECU (smart key ECU assembly) judges and certifies the ID code. It then checks the location of the key and, if all doors are closed, the ECU transmits a door lock signal to the main body ECU (driver side junction block assembly).

(d) The main body ECU (driver side junction block assembly) receives this signal and actuates the lock motors.

(e) The main body ECU (driver side junction block assembly) blinks the hazard warning lights once and the main body ECU (driver side junction block assembly) sounds the wireless door lock buzzer once as an answerback for the entry lock function.

9. ENTRY BACK DOOR OPEN FUNCTION

(a) The unlock signal is transmitted to the certification ECU (smart key ECU assembly) from the back door opener switch assembly.

(b) The certification ECU (smart key ECU assembly) transmits a request signal for the outside electrical key oscillator (for rear side) to form detection area.

(c) The key receives this signal and returns the ID code to the door control receiver assembly.

(d) The certification ECU (smart key ECU assembly) judges and certifies the ID code, and check the location of the key. The ECU transmits a back door open signal to the main body ECU (driver side junction block assembly).

(e) Any ECU receives this signal and actuates the motor to open manually the back door.

10. PREVENTION OF KEY CONFINEMENT FUNCTION

(a) The key confinement prevention function prevents the key from being locked in the vehicle.

(1) When the door is locked by the lock knob in the inside door handle while the key is still the in vehicle interior, the main body ECU (driver side junction block assembly) receivers this signal and transmits the door condition signal to the certification ECU (smart key ECU assembly).

(2) The certification ECU (smart key ECU assembly) transmits a request signal for the indoor electrical key oscillators (for front, center and rear floor) to form detection area.

(3) The key receives this signal and returns the ID code to the door control receiver assembly.

(4) The certification ECU (smart key ECU assembly) judges and certifies the ID code, and check the location of the key. The ECU transmits a door unlock signal to the main body ECU (driver side junction block assembly).

(5) The main body ECU (driver side junction block assembly) receives this signal and actuates the all door lock assemblies to unlock.

(6) The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and buzzer in the combination meter as an answer back for unlock.

11. ENTRY ILLUMINATION FUNCTION

When a person carrying the key enters the detection area, the door will enter unlock standby mode and the front map light will illuminate.

HINT:

The entry illumination function operates when the key enters the exterior detection area from outside the detection area. If the key does not remain out of the detection area for 3 seconds or more, the illumination function does not operate.

12. WARNING FUNCTION

(a) Warning

(1) When any of the situations below occur, the smart key system causes the certification ECU (smart key ECU assembly) to sound a buzzer in the combination meter assembly and the wireless door lock buzzer, a message to appear on the multi-information display, and the engine switch illumination to operate in order to alert the driver.

Situation

Condition

A

The engine is left running and the shift lever is in a position other than P when the driver gets out of the vehicle.

B

The key reminder sounds.

C

The engine is left running and the shift lever is in P when the driver gets out of the vehicle.

D

A door is ajar.

E

The engine is left running when a passenger gets out of the vehicle while holding the key.

F

The key is not in the detection areas.

G

The key is left in the vehicle.

H

The key battery is weak.

I

The steering lock does not release.

J

The steering lock mechanism is malfunctioning.

K

The power management ECU is malfunctioning.

L

Engine cannot be started (driver error).

M

Engine cannot be started (system error).

N

An attempt is made to turn off the vehicle with the shift lever in a position other than P or N*.

O

Auto power off operation occurs*.

P

Immobiliser system certification completion occurs.

Q

The vehicle is driven without a key.

*: w/ Rear View Monitor System

(2) Situation A

  • There are 2 patterns for situation A.
    • Pattern 1:

      When the engine is left running and the shift lever is in a position other than P, the driver opens the door and attempts to get out of the vehicle.

      In this situation, the following control is performed:

      Possible Effects without Warning

      Sudden vehicle start, vehicle theft, vehicle roll-away

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • The engine switch is in a mode other than off.
      • The shift lever is in a position other than P.
      • The vehicle speed is 0 mph (0 km/h).
      • The driver door is opened.

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sounds continuously

      Accessory Meter Assembly

      Key Warning Light*1

      -

      Multi-information Display*2

      The following warning message is displayed:

      • Shift to P position and push engine switch to turn power off

      Wireless Door Lock Buzzer

      -

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when one of the following conditions is met:

      • The engine switch is turned off.
      • The shift lever is moved to P.
      • The vehicle speed is above 0 mph (0 km/h).
      • The driver door is closed.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

    • Pattern 2:

      Under the situation of pattern 1, the driver closes the door and attempts to leave the vehicle while holding the key.

      In this situation, the following control is performed:

      Possible Effects without Warning

      Sudden vehicle start, vehicle theft, vehicle roll-away

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • The shift lever is in any position except P.
      • The shift lever is in a position other than P.
      • The vehicle speed is 0 mph (0 km/h).
      • The key is not in the vehicle.
      • The driver door is opened → closed.

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sounds continuously

      Accessory Meter Assembly

      Key Warning Light*1

      Illuminates

      Multi-information Display*2

      The following warning message are alternately displayed:

      • Shift to P position and push engine switch to turn power off
      • Key is not detected

      Wireless Door Lock Buzzer

      Sounds continuously

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when one of the following conditions is met:

      Combination Meter Assembly

      Buzzer
      • The engine switch is turned off.
      • The shift lever is moved to P.
      • The vehicle speed is above 0 mph (0 km/h).
      • Key is returned the vehicle.

      Accessory Meter Assembly

      Key Warning Light*1
      • The engine switch is turned off.
      • Key is returned the vehicle.

      Multi-information Display*2

      The following warning message is displayed:

      • Key is not detected
      • The engine switch is turned off.
      • Key is returned the vehicle.

      The following warning message is displayed:

      • Shift to P position and push engine switch to turn power off
      • The shift lever is moved to P.
      • The vehicle speed is above 0 mph (0 km/h).

      Wireless Door Lock Buzzer
      • The engine switch is turned off.
      • The shift lever is moved to P.
      • The vehicle speed is above 0 mph (0 km/h).
      • Key is returned the vehicle.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

(3) Situation B

  • There are two patterns for situation B.
    • Pattern 1:

      When the driver door is open, the driver turns the engine switch on (ACC) and attempts to leave the vehicle.

    • Pattern 2:

      When the driver door is open, the driver turns the engine switch from on (IG) to off and attempts to leave the vehicle.

      In these situations, the following control is performed:

      Possible Effects without Warning

      Vehicle theft

      Warning Active Condition

      The warning is activated when either of the following conditions is met:

      • The engine switch is on (ACC) and the driver door is opened.
      • The engine switch is off, the steering is unlocked, and the driver door is opened.

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sounds continuously at short and even intervals

      Accessory Meter Assembly

      Key Warning Light*1

      -

      Multi-information Display*2

      -

      Wireless Door Lock Buzzer

      -

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when one of the following conditions is met:

      • The engine switch is turned on (IG).
      • The driver door is closed.
      • The engine switch is turned off and the steering is locked.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

(4) Situation C

  • There are 2 patterns for situation C.
    • Pattern 1:

      When the engine is left running and the shift lever is in P, the driver closes the driver door and attempts to leave the vehicle while holding the key.

      In this situation, the following control is performed:

      Possible Effects without Warning

      Vehicle theft, engine cannot be restarted, discharged battery

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • The shift lever is moved to P.
      • The engine switch is in a mode other than off.
      • The key is not in the vehicle.
      • The driver door is opened → closed.

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sound once

      Accessory Meter Assembly

      Key Warning Light*1

      Illuminates

      Multi-information Display*2

      The following warning message is displayed:

      • Key is not detected

      Wireless Door Lock Buzzer

      Sounds 3 times

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when either of the following conditions is met:

      • The engine switch is turned off.
      • The key is returned to the vehicle.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

    • Pattern 2:

      Under the situation of pattern 1, the driver touches the lock sensor on the door outside handle assembly.

      In this situation, the following control is performed:

      Possible Effects without Warning

      Vehicle theft, discharged battery

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • The engine switch is in a mode other than off.
      • The shift lever is moved to P.
      • All doors are closed.
      • The key is not in the vehicle (within one of the detection areas).

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sound once

      Accessory Meter Assembly

      Key Warning Light*1

      Illuminates

      Multi-information Display*2

      The following warning message is displayed for 60 seconds (and then automatically turned off).

      • Turn Power Off Key not Detected

      Wireless Door Lock Buzzer

      Sounds continuously

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when either of the following conditions is met:

      Accessory Meter Assembly

      Key Warning Light*1
      • The engine switch is turned off.
      • The shift lever is in a position other than P.
      • The vehicle speed is above 0 mph (0 km/h).

      Multi-information Display*2

      The following warning message are alternately displayed:

      • Turn Power Off Key not Detected
      • The engine switch is turned off.
      • The shift lever is in a position other than P.
      • The vehicle speed is above 0 mph (0 km/h).

      Wireless Door Lock Buzzer
      • 10 seconds have elapsed after the wireless door lock buzzer was activated.
      • The any door is opened.
      • The engine switch is turned off.
      • The shift lever is in any position except P.
      • The vehicle speed is above 0 mph (0 km/h).
      • Key is returned the vehicle.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

(5) Situation D

  • The lock sensor on the door outside handle assembly is touched to perform entry lock with a door open.

    In this situation, the following control is performed:

    Possible Effects without Warning

    Vehicle theft

    Warning Active Condition

    The warning is activated when all of the following conditions are met:

    • The engine switch is turned off.
    • Any door is opened.
    • The lock sensor on the door outside handle assembly is on (touched).

    Warning Method

    Combination Meter Assembly

    Buzzer

    -

    Accessory Meter Assembly

    Key Warning Light*1

    -

    Multi-information Display*2

    -

    Wireless Door Lock Buzzer

    Continuous sound

    Engine Switch Illumination

    -

    Warning Stop Condition

    The warning is stopped when one of the following conditions is met:

    • The engine switch is turned to a mode other than off.
    • All doors are closed.
    • An unlock operation is performed using the wireless door lock remote function.
    • The touch sensor on the inner side of a door outside handle assembly is used to perform entry unlock.
    • 10 seconds have elapsed after the wireless door lock buzzer was activated.

    *1: w/o Rear View Monitor System

    *2: w/ Rear View Monitor System

(6) Situation E

  • When the engine is left running, a passenger leaves the vehicle while holding the key.

    In this situation, the following control is performed:

    Possible Effect without Warning

    Engine cannot be restarted

    Warning Active Condition

    The warning is activated when all of the following conditions are met:

    • The engine switch is in a mode other than off.
    • A door other than the driver door is opened → closed.
    • The vehicle speed is 0 mph (0 km/h).
    • The key is not in the vehicle.

    Warning Method

    Combination Meter Assembly

    Buzzer

    Sounds once

    Accessory Meter Assembly

    Key Warning Light*1

    Illuminates

    Multi-information Display*2

    The following warning message is displayed:

    • Key is not detected

    Wireless Door Lock Buzzer

    Sounds 3 times

    Engine Switch Illumination

    -

    Warning Stop Condition

    The warning is stopped when either of the following conditions is met:

    • The engine switch is turned off.
    • The key is returned to the vehicle.

    *1: w/o Rear View Monitor System

    *2: w/ Rear View Monitor System

(7) Situation F

  • When the key is not in the vehicle or the key battery is dead, the driver attempts to start the engine or turn the engine switch on (IG).

    In this situation, the following control is performed:

    Possible Effects without Warning

    Confuses the user

    Warning Active Condition

    The warning is activated when all both of the following conditions are met:

    • The engine switch is pushed.
    • The key is not in the vehicle.

    Warning Method

    Combination Meter Assembly

    Buzzer

    Sounds once

    Accessory Meter Assembly

    Key Warning Light*1

    -

    Multi-information Display*2

    The following warning message is displayed:

    • Key is not detected

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    -

    Warning Stop Condition

    Check if the key is in the detection area.

    If the key is in the detection area, press the wireless door lock switch and confirm that the indicator comes on. If the indicator does not come on, replace the key battery with a new one.

    *1: w/o Rear View Monitor System

    *2: w/ Rear View Monitor System

(8) Situation G

  • There are two patterns for situation G.
    • Pattern 1:

      The lock sensor on a door outside handle assembly is touched to perform entry lock with the key left in the vehicle.

      In this situation, the following control is performed:

      Possible Effect without Warning

      Vehicle theft

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • The engine switch is turned off.
      • All doors are closed.
      • The key is in the vehicle.
      • The lock sensor on the door outside handle assembly is on (touched).
      • Any door is unlocked.

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sounds once

      Accessory Meter Assembly

      Key Warning Light*1

      -

      Multi-information Display*2

      The following warning message is displayed for 60 seconds (and then automatically turned off).

      • Key Detected in Vehicle

      Wireless Door Lock Buzzer

      Sounds continuously

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when one of the following conditions is met:

      Accessory Meter Assembly

      Multi-information Display*2

      The following warning message is displayed:

      • Key Detected in Vehicle
      • The engine switch is turned to a mode other than off.
      • The vehicle speed is above 0 mph (0 km/h).
      • Lock operation is detected.

      Wireless Door Lock Buzzer
      • 10 seconds have elapsed after the wireless door lock buzzer was activated.
      • Any door is opened.
      • The engine switch is turned to a mode other than off.
      • The vehicle speed is above 0 mph (0 km/h).
      • Lock operation is detected.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

    • Pattern 2:

      With a door open and the key in the cabin, the lock knob is locked and then the door is closed with the door handle being pulled.

      In this situation, the following control is performed:

      Possible Effect without Warning

      Vehicle theft

      Warning Active Condition

      The warning is activated when both of the following conditions are met:

      • With a door open, the lock knob is locked and then the door is closed with the door handle being pulled.
      • The key is in the vehicle.

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sounds once

      Accessory Meter Assembly

      Key Warning Light*1

      -

      Multi-information Display*2

      The following warning message is displayed for 60 seconds (and then automatically turned off).

      • Key Detected in Vehicle

      Wireless Door Lock Buzzer

      Sounds continuously

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when one of the following conditions is met:

      Accessory Meter Assembly

      Multi-information Display*2

      The following warning message is displayed:

      • Key Detected in Vehicle
      • The engine switch is turned to a mode other than off.
      • The vehicle speed is above 0 mph (0 km/h).
      • Lock operation is detected.

      Wireless Door Lock Buzzer
      • 10 seconds have elapsed after the wireless door lock buzzer was activated.
      • Any door is opened.
      • The engine switch is turned to a mode other than off.
      • The vehicle speed is above 0 mph (0 km/h).
      • Lock operation is detected.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

(9) Situation H

  • The vehicle is driven using a key that has a low battery.

    In this situation, the following control is performed:

    Possible Effect without Warning

    Smart key system does not function

    Warning Active Condition

    The warning is activated when both of the following conditions are met:

    • The engine switch is turned off after being left on (IG) for more than 20 minutes.
    • The key battery voltage is low.

    Warning Method

    Combination Meter Assembly

    Buzzer

    Sounds once

    Accessory Meter Assembly

    Key Warning Light*1

    -

    Multi-information Display*2

    The following warning message is displayed for 15 seconds (and then automatically turned off).

    • Low Key Battery

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    -

    Warning Stop Condition

    The key battery is replaced with a new one.

    *1: w/o Rear View Monitor System

    *2: w/ Rear View Monitor System

(10) Situation I

  • The steering lock cannot be released.

    In this situation, the following control is performed:

    Possible Effect without Warning

    Steering usability function

    Warning Active Condition

    The steering lock cannot be released, thus the engine is prevented from starting.

    Warning Method

    Combination Meter Assembly

    Buzzer

    Sounds once

    Accessory Meter Assembly

    Key Warning Light*1

    -

    Multi-information Display*2

    The following warning message is displayed for 15 seconds (and then automatically turned off).

    • Steering Lock is still active

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    The green indicator blinks at 1-second intervals (goes off automatically after 30 seconds).

    Warning Stop Condition

    The engine switch is pushed while the steering wheel is turned left and right, and the steering lock successfully disengages.

    *1: w/o Rear View Monitor System

    *2: w/ Rear View Monitor System

(11) Situation J

  • A malfunction of the steering lock ECU (steering lock actuator assembly) is detected.

    In this situation, the following control is performed:

    Possible Effect without Warning

    Malfunction detection

    Warning Active Condition

    A malfunction of the steering lock ECU is detected.

    Warning Method

    Combination Meter Assembly

    Buzzer

    Sounds once

    Accessory Meter Assembly

    Key Warning Light*1

    -

    Multi-information Display*2

    The following warning message is displayed for 60 seconds (and then automatically turned off).

    • Check Steering Lock System

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    The amber indicator blinks at 2-second intervals (goes off automatically after 15 seconds).

    Warning Stop Condition

    The steering lock ECU returns to normal.

    *1: w/o Rear View Monitor System

    *2: w/ Rear View Monitor System

(12) Situation K

  • A malfunction of the power management control ECU is detected.

    In this situation, the following control is performed:

    Possible Effect without Warning

    Malfunction detection

    Warning Active Condition

    A malfunction of the power management ECU is detected.

    Warning Method

    Combination Meter Assembly

    Buzzer

    -

    Accessory Meter Assembly

    Key Warning Light*1

    -

    Multi-information Display*2

    -

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    The amber indicator blinks at 2-second intervals (goes off automatically after 15 seconds).

    Warning Stop Condition

    The power management control ECU returns to normal.

    *1: w/o Rear View Monitor System

    *2: w/ Rear View Monitor System

(13) Situation L (w/ Rear View Monitor System)

  • There are two patterns for situation L.
    • Pattern 1:

      A warning message appears on the multi-information display when the driver does not follow the proper procedure to start the vehicle.

      In this situation, the following control is performed:

      Possible Effects without Warning

      Usability function

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • The engine switch is turned off.
      • Driver door is closed → opened.
      • The engine switch is turned from off to on (ACC) more than twice with the engine off and brake pedal not depressed.

      Warning Method

      Combination Meter Assembly

      Buzzer

      -

      Accessory Meter Assembly

      Multi-information Display

      The following warning message is displayed for 10 seconds (and then automatically turned off).

      • Depress brake pedal and push engine switch to start

      Wireless Door Lock Buzzer

      -

      Engine Switch Illumination

      -

      Warning Stop Condition

      The engine switch is pushed with the brake pedal depressed.
    • Pattern 2:

      A message indicating how to start the engine appears on the multi-information display when the shift lever is in a position in which the engine cannot be started.

      In this situation, the following control is performed:

      Possible Effects without Warning

      Usability function

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • The engine is stopped.
      • The vehicle speed is 0 mph (0 km/h).
      • More than 0.5 seconds have elapsed after the engine switch was turned on (IG).
      • The engine is not cranking.
      • The shift lever not in P or N

      Warning Method

      Combination Meter Assembly

      Buzzer

      -

      Accessory Meter Assembly

      Multi-information Display

      The following warning message is displayed:

      • Shift to P position to start

      Wireless Door Lock Buzzer

      -

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when one of the following conditions is met:

      • The shift lever is moved to P or N.
      • The vehicle speed is above 0 mph (0 km/h).
      • The engine switch is turned off or on (ACC).
      • The engine is started.

(14) Situation M

  • There are two patterns for situation M.
    • Pattern 1:

      When the engine switch is pushed, the key cannot be detected in the vehicle two times in a row.

      In this situation, the following control is performed:

      Possible Effects without Warning

      Usability function

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • The immobiliser system is set.
      • The key is not in the vehicle.
      • When the engine switch is turned on (ACC) or on (IG) , a certification error occurs two times in a row.

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sounds once

      Accessory Meter Assembly

      Key Warning Light*1

      -

      Multi-information Display*2

      The following warning message is displayed for 60 seconds (and then automatically turned off).

      • Depress brake pedal, touch engine switch with key

      Wireless Door Lock Buzzer

      -

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when either of the following conditions is met:

      • The immobiliser system certification result is OK.
      • Key certification in the vehicle has stopped either because 30 seconds have elapsed after any of the doors is opened and closed, or because the brake pedal is depressed.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

    • Pattern 2:

      The driver attempts to start the engine after performing a driver door key linked unlock operation.

      In this situation, the following control is performed:

      Possible Effects without Warning

      Usability function

      Warning Active Condition

      The warning is activated when all of the following conditions are met:

      • A driver door key linked unlock operation is performed.
      • The immobiliser system is set.
      • The engine switch is pushed.
      • The key is not in the vehicle.

      Warning Method

      Combination Meter Assembly

      Buzzer

      Sounds once

      Accessory Meter Assembly

      Key Warning Light*1

      -

      Multi-information Display*2

      The following warning message is displayed for 60 seconds (and then automatically turned off).

      • Depress brake pedal, touch engine switch with key

      Wireless Door Lock Buzzer

      -

      Engine Switch Illumination

      -

      Warning Stop Condition

      The warning is stopped when either of the following conditions is met:

      • The immobiliser system certification result is OK.
      • The Key is returned to the vehicle.

      *1: w/o Rear View Monitor System

      *2: w/ Rear View Monitor System

(15) Situation N (w/ Rear View Monitor System)

  • A warning message appears on the multi-information display when the driver attempts to turn the engine switch off with the shift lever in any position other than P or N.

    In this situation, the following control is performed:

    Possible Effects without Warning

    Usability function

    Warning Active Condition

    The warning is activated when both of the following conditions are met:

    • The shift lever is in any position other than P or N.
    • The engine switch is turned from on (IG) to on (ACC).

    Warning Method

    Combination Meter Assembly

    Buzzer

    -

    Accessory Meter Assembly

    Multi-information Display

    The following warning message is displayed:

    • Shift to P position and push engine switch to turn power off

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    -

    Warning Stop Condition

    The warning is stopped when either of the following conditions is met:

    • The shift lever is moved to P.
    • The engine switch is turned to a mode other than on (ACC).

(16) Situation O (w/ Rear View Monitor System)

  • A warning message appears on the multi-information display when automatic power off operation occurs.

    In this situation, the following control is performed:

    Possible Effects without Warning

    Battery Saving function

    Warning Active Condition

    The warning is activated when all of the following conditions are met:

    • The shift lever is moved to P.
    • The engine switch is on (ACC) or on (IG).
    • The vehicle speed is 0 mph (0 km/h).
    • The engine is stopped.
    • The power source control system is turned off by automatic power off function.

    Warning Method

    Combination Meter Assembly

    Buzzer

    -

    Accessory Meter Assembly

    Multi-information Display

    The following warning message is displayed for 10 seconds (and then automatically turned off).

    • Auto power off to conserve battery

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    -

    Warning Stop Condition

    The engine switch is turned a other than off.

(17) Situation P

  • A warning message appears on the multi-information display when a key with a depleted battery is touched to the engine switch while depressing the brake.

    In this situation, the following control is performed:

    Possible Effects without Warning

    Malfunction detection

    Warning Active Condition

    Key certification result is OK*3

    Warning Method

    Combination Meter Assembly

    Buzzer

    Sounds once

    Accessory Meter Assembly

    Key Warning Light*1

    -

    Multi-information Display*2

    The following warning message is displayed for 10 seconds (and then automatically turned off).

    • Depress brake pedal and push engine switch to start

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    The amber indicator blinks

    Warning Stop Condition

    The warning is stopped when either of the following conditions is met:

    • The engine is started.
    • The Key is returned to the vehicle.

    *1: w/o Rear View Monitor System

    *2: w/ Rear View Monitor System

    *3: This situation occurs following situation M.

(18) Situation Q

  • A warning message appears on the multi-information display when the vehicle starts moving without the registered key in the vehicle interior.

    In this situation, the following control is performed:

    Possible Effects without Warning

    Engine cannot be restarted

    Warning Active Condition

    When vehicle speed is detected after the key is removed from the vehicle, the warning is activated (only for first time).

    Warning Method

    Combination Meter Assembly

    Buzzer

    Sounds once

    Accessory Meter Assembly

    Key Warning Light*1

    Illuminates

    Multi-information Display*2

    The following warning message is displayed:

    • Key is not detected

    Wireless Door Lock Buzzer

    -

    Engine Switch Illumination

    -

    Warning Stop Condition

    The warning is stopped when either of the following conditions is met:

    • The engine switch is turned off.
    • The Key is returned to the vehicle.

13. BATTERY SAVING

(a) Vehicle Battery Saving Function

In the smart key system, signals are emitted outside the vehicle at a prescribed interval (0.25 seconds) when the doors are locked. Therefore, the vehicle battery could be drained if the vehicle remains parked for a long time. For this reason, the controls listed below are affected:

Condition

Control

Both conditions below are met for 5 days:

  • Key is not in detection area
  • Touch sensor or lock switch operation is not performed

Signal transmission interval is extended from 0.25 to 0.75 seconds

Both conditions below are met for 14 days:

  • Key is not in detection area
  • Touch sensor or lock switch operation is not performed

The smart key system is automatically deactivates

Reinstatement Conditions

  • A wireless door lock control signal (lock, unlock) is input and the ID code matches.
  • A user carries the key and touches a lock sensor on a door outside handle assembly.
  • The driver door is locked or unlocked by the mechanical key.

(b) Key Battery and Vehicle Battery Saving Function

In the smart key system, if the key is constantly in the exterior detection area of the doors, the system maintains periodic communication with the key. Therefore, if the vehicle remains parked in that state for a long time, the key battery and vehicle battery could be drained. For this reason, if this state continues longer than 10 minutes, the smart key system automatically becomes deactivated.

Reinstatement Conditions

  • A wireless door lock control signal (lock, unlock) is input and the ID code matches.
  • A user carries the key and touches a lock sensor on a door outside handle assembly.
  • A door is locked or unlocked by the mechanical key.
System Diagram
SYSTEM DIAGRAM Communication Table Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method Main body ECU (Driver si ...

How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT HINT: Use the following procedure to troubleshoot the smart key system. *: Use the Techstream. PROCEDURE 1. VEHICLE BROUGHT TO W ...

Other materials about Toyota Venza:

On-vehicle Inspection
ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT CAUTION: Be sure to follow the correct removal and installation procedures of the driver side knee airbag assembly. PROCEDURE 1. INSPECT DRIVER SIDE KNEE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION) ...

Installation
INSTALLATION CAUTION / NOTICE / HINT NOTICE: If installing a new rear differential carrier assembly, remove the 2 differential side seal caps before installing the rear drive shaft assembly. PROCEDURE 1. INSTALL REAR DIFFERENTIAL DYNAMIC DAMPER HINT: ...

Washer Nozzle(for Rear Side)
Components COMPONENTS ILLUSTRATION On-vehicle Inspection ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT REAR WASHER NOZZLE (a) With the engine running, check where the washer fluid hits the windshield. Standard Measurement Area ...

© 2016-2024 Copyright www.tovenza.com

0.1165
