REMOVAL
PROCEDURE
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).
2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
5. REMOVE COURTESY LIGHT ASSEMBLY
6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
7. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
8. REMOVE DOOR FRAME GARNISH
9. REMOVE DOOR SIDE AIRBAG SENSOR
10. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
11. REMOVE FRONT DOOR SERVICE HOLE COVER
12. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
13. REMOVE FRONT DOOR GLASS RUN
14. DISCONNECT FRONT DOOR WEATHERSTRIP

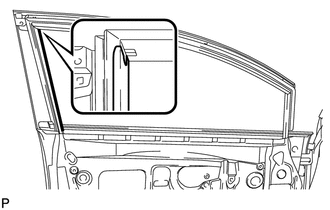

(a) Using a clip remover, disengage the 2 clips and remove the upper part of the front door weatherstrip to the extent that allows removal of the front door stripe and black out tape. |
|
15. REMOVE FRONT DOOR STRIPE
(a) Using a heat light, heat the front door stripe and vehicle body.
Heating Temperature
Item |
Temperature |
---|---|
Vehicle Body |
40 to 60°C (104 to 140°F) |
NOTICE:
Do not heat the vehicle body excessively.
(b) Pull back on one of the ends of the front door stripe to remove it. HINT: When pulling on the tape, pull it parallel to the body. |
|
16. REMOVE FRONT DOOR LOWER OUTSIDE STRIPE
(a) Using a heat light, heat the front door lower outside stripe and vehicle body.
Heating Temperature
Item |
Temperature |
---|---|
Vehicle Body |
40 to 60°C (104 to 140°F) |
NOTICE:
Do not heat the vehicle body excessively.
(b) Pull back on one of the ends of the front door lower outside stripe to remove it. HINT: When pulling on the tape, pull it parallel to the body. |
|
17. REMOVE NO. 1 BLACK OUT TAPE
(a) Using a heat light, heat the No. 1 black out tape and vehicle body.
Heating Temperature
Item |
Temperature |
---|---|
Vehicle Body |
40 to 60°C (104 to 140°F) |
NOTICE:
Do not heat the vehicle body excessively.
(b) Pull back on one of the ends of the No. 1 black out tape to remove it. HINT: When pulling on the tape, pull it parallel to the body. |
|
