Toyota Venza: Engine compartment

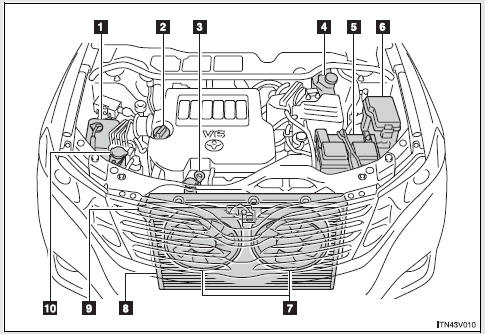

2GR-FE engine


1. Engine coolant reservoir 2. Engine oil filler cap 3. Engine oil level dipstick 4. Brake fluid reservoir 5. Battery
6. Fuse box
7. Electric cooling fans 8. Condenser
9. Radiator
10.Washer fluid tank

1AR-FE engine


1. Engine coolant reservoir 2. Engine oil filler cap 3. Engine oil level dipstick 4. Brake fluid reservoir 5. Battery
6. Fuse box
7. Electric cooling fans 8. Condenser
9. Radiator
10.Washer fluid tank

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack correctly. Improper placement may damage your vehicle or cause injury. ►Front ►Rear (2WD models) ►Rear (AWD mod ...

Engine oil
With the engine at operating temperature and turned off, check the oil level on the dipstick.  - Checking the engine oil Park the vehicle on level ground. After warming up the engine and t ...
