DISPOSAL
CAUTION / NOTICE / HINT
CAUTION:
Before performing pre-disposal deployment of any SRS component, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.
PROCEDURE
1. PRECAUTION
CAUTION:
HINT:
When scrapping a vehicle equipped with an SRS or disposing of the curtain shield airbag assembly, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the Service Dept. of TOYOTA MOTOR SALES, U.S.A., INC.
2. DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (WHEN INSTALLED IN VEHICLE)
NOTICE:
HINT:
Prepare a battery as the power source to deploy the airbag.
(a) Check the function of SST (See page ). SST: 09082-00700 |
|
(b) Refer to Precaution (See page ).
(c) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
(d) Remove the roof headlining assembly (See page ).
(e) Install SST.
CAUTION:
Check that there is no looseness in the curtain shield airbag assembly.
(1) Disconnect the connector from the curtain shield airbag assembly.
NOTICE:
When disconnecting the airbag connector, take care not to damage the airbag wire harness.
(2) After connecting the following SST to each other, connect them to the curtain shield airbag assembly. SST: 09082-00700 SST: 09082-00802 09082-10801 09082-20801 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. |
|
(3) Move SST at least 10 m (32.8 ft.) away from the rear side window. Text in Illustration
|
|
(4) Maintaining sufficient clearance for the SST wire harness in the rear side window, close all doors and windows of the vehicle.
NOTICE:
Take care not to damage the SST wire harness.
(5) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
(f) Deploy the airbag.
(1) Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.
(2) Press the SST activation switch and deploy the airbag.
CAUTION:
HINT:
The airbag is deployed as the LED of the SST activation switch comes on.
3. DISPOSE OF CURTAIN SHIELD AIRBAG ASSEMBLY (WHEN NOT INSTALLED IN VEHICLE)
NOTICE:
Be sure to observe the following procedure when deploying the airbag.
HINT:
Prepare a battery as the power source to deploy the airbag.
(a) Check the function of SST (See page ). SST: 09082-00700 |
|
(b) Remove the curtain shield airbag assembly (See page ).
CAUTION:
(c) Cut off the deployment section of the curtain shield airbag assembly. |
|
(d) Using braided wire, tie down the curtain shield airbag assembly to an unneeded tire.
Text in Illustration
*1 |
Stripped Wire Section |
*2 |
Wire Diameter |
Wire:
Stripped wire section
1.25 mm2 (0.0019 in.2) or more
CAUTION:
If the wire is too thin or an alternative object is used to tie down the curtain shield airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with an area of at least 1.25 mm2 (0.0019 in.2).
HINT:
To calculate the area of the stripped wire section:
Area = 3.14 x (Diameter)2 / 4
(1) Position the curtain shield airbag assembly inside the tire as shown in the illustration. Text in Illustration
Minimum tire size: Must exceed the following dimensions Width: 185 mm (7.28 in.) Inner diameter: 360 mm (1.18 ft.) CAUTION: Make sure that the wires are tight. If there is slack in the wires, the curtain shield airbag assembly may break loose when the airbag is deployed. NOTICE: The tire may be marked by the airbag deployment, so use an unneeded tire. |
|
(e) Install SST.
(1) After connecting the following SST to each other, connect them to the curtain shield airbag assembly. SST: 09082-00802 09082-10801 09082-20801 |
|
(f) Place the tires.
CAUTION:
Do not face the deployment side of the curtain shield airbag assembly toward the ground.

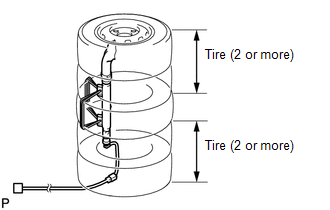

(1) Place at least 2 tires under the tire to which the curtain shield airbag assembly is tied. |
|
(2) Place at least 2 tires onto the tire to which the curtain shield airbag assembly is tied. The top tire should have a wheel installed.
NOTICE:
Do not place the SST connector under the tire because it could be damaged.
(3) Tie the tires together with the 2 wires. CAUTION: Make sure that the wires are tight. Looseness in the wires results in the tires breaking loose when the airbag is deployed. |
|
(g) Install SST.
(1) Connect the SST connector. Text in Illustration
SST: 09082-00700 NOTICE: To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire. |
|
(2) Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.
(h) Deploy the airbag.
(1) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
(2) Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the curtain shield airbag assembly is tied.
(3) Press the SST activation switch and deploy the airbag.
CAUTION:
Before deployment, make sure that no one is near the airbag.
HINT:
The airbag is deployed as the LED of the SST activation switch comes on.
(i) Dispose of the curtain shield airbag assembly. CAUTION:
(1) Remove the curtain shield airbag assembly from the tire. (2) Place the curtain shield airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations. |
|
